P50 Compact M.2 PCIe NVMe SSD NVMe Gen3 X4 Storage For Harsh Environments

Brand Name:	NUW
Model Number:	P50
MOQ:	10
Price:	$70-450/pcs
Delivery Time:	10-15days
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

AEC-Q100、RoHS、REACH、UL/CE

Form Factor:

M.2 2280

Sequential Read/Write:

3000MB/s; 1000MB/s

Interface:

PCle 3.0x4 NVMe 1.2

Operating Temperature:

-40℃ ~ 85℃

Dimension(mm):

80.0×22.0×3.6

Shock Reliability:

1500g/0.5ms

Packaging Details:

Customizable Packaging Available

Supply Ability:

100k/month

Highlight:

Compact M.2 PCIe NVMe SSD

M.2 PCIe NVMe SSD 1000MB/s

Harsh Environmentsnvme gen3 x4

Product Description

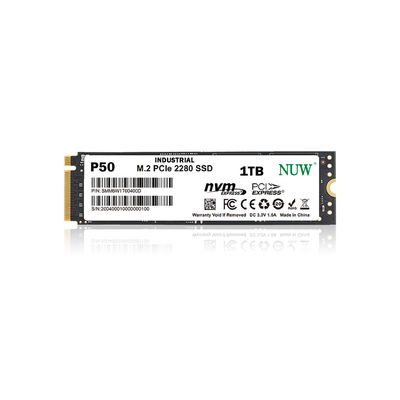

P50 Industrial M.2 SSD | Compact, Stable NVMe Storage for Harsh Environments

Product Description

NUW P50 series industrial SSD PCIe 3.0 M.2 Module delivers high-speed performance (up to 3,000/1,000 MB/s read/write) with PCIe Gen3x4NVMe protocol and compact M.2 2280/2242 form factor, optimized for space-constrained industrial systems. Engineered for harsh environments, it features -40°C to 85°C wide-temperature tolerance, 3D TLC NAND flash, and LDPC ECC for enhanced data integrity and endurance in mission-critical tasks. Ideal for industrial automation, edge computing, transportation systems, and rugged embedded devices, it balances low power consumption with shock/vibration resistance, ensuring stable operation in demanding IoT and AIoT applications

Product Parameters

Basic Information
Form Factor	M.2 2280
Interface	PCle 3.0x4 NVMe 1.2
Dimension(mm)	80.0×22.0×3.6
Cache	DRAM
Flash	TLC
Capacity	1TB, 2TB
Temperature
Operating Temperature	-40℃ ~ 85℃
Storage Temperature	-55℃ ~ 95℃
Performance
Sequential Read/Write	3000MB/s; 1000MB/s
Random Read/Write(4K) IOPS	220K IOPS; 200K IOPS
Reliability
MTBF	2,000,000hrs
Vibration	15g(10~2000Hz)
Shock	1500g/0.5ms
Humidity	5% ~ 95%(No condensing)
Electrical
Power Supply	3.3V±5%
Power Consumption	Active≤13W Idle≤3.6W
Optional Functions
Secure Erase	Y
Quick Erase	Y
Physical Destruction	N/M
