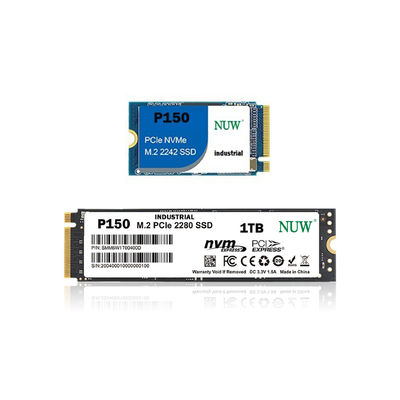

P150 2000MB/S M.2 PCIe NVMe SSD Mission Critical Gen3 M.2 SSD

Name: P150 2000MB/S M.2 PCIe NVMe SSD Mission Critical Gen3 M.2 SSD
Brand: Shenzhen Quadra Seven Technology Co., Ltd.
SKU: P150
Price: 260.00 USD
Availability: InStock

Brand Name:	NUW
Model Number:	P150
MOQ:	10
Price:	$70-450/pcs
Delivery Time:	10-15days
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

AEC-Q100、RoHS、REACH、UL/CE

Form Factor:

M.2 2280/2242

Sequential Read/Write:

3200MB/s; 2000MB/s

Interface:

PCle 3.0x4 NVMe 1.3

Operating Temperature:

-40℃ ~ 85℃

Dimension(mm):

2280:22×80×2.15/2242:22×42×3.8

Shock Reliability:

1500g/0.5ms

Packaging Details:

Customizable Packaging Available

Supply Ability:

100k/month

Highlight:

3200MB/s M.2 PCIe NVMe SSD

2000MB/s M.2 PCIe NVMe SSD

Mission Critical Gen3 M.2 SSD

Product Description

P150 Industrial PCIe Gen3 M.2 SSD | Reliable Storage for Industrial & Mission-Critical Use

Product Description

NUW P150 series industrial SSD PCIe 3.0 M.2 Module delivers high-speed performance (up to 3,200/2,000 MB/s read/write) with PCIe Gen3x4 NVMe protocol, engineered for rugged environments with -40°C to 85°C wide-temperature tolerance and industrial-grade 3D TLC NAND flash. Built for AI edge computing, industrial automation, and medical imaging systems, it ensures data integrity through LDPC ECC, power-loss protection (PLP), and thermal throttling. Available in 64GB–2TB capacities, its M. 2 2280 form factor and enhanced endurance (3000 P/E cycles) make it ideal for 5G infrastructure, autonomous vehicles, and high-resolution data processing in mission-critical scenarios.

Product Parameters

Basic Information
Form Factor	M.2 2280/2242
Interface	PCle 3.0x4 NVMe 1.3
Dimension(mm)	M.2 2280:22×80×2.15 M.2 2242:22×42×3.8
Cache	DRAM-Less
Flash	TLC
Capacity	pSLC:64GB, 128GB, 256GB, 512GB TLC:256GB, 512GB, 1TB, 2TB
Temperature
Operating Temperature	-40℃ ~ 85℃
Storage Temperature	-55℃ ~ 95℃
Performance
Sequential Read/Write	3200MB/s; 2000MB/s
Random Read/Write(4K) IOPS	137K IOPS; 36K IOPS
Reliability
MTBF	2,000,000hrs
Vibration	15g(10~2000Hz)
Shock	1500g/0.5ms
Humidity	5% ~ 95%(No condensing)
Electrical
Power Supply	3.3V±5%
Power Consumption	Active≤3.8W Idle≤0.65W
Optional Functions
Secure Erase	Y
Quick Erase	Y
Physical Destruction	N/M
