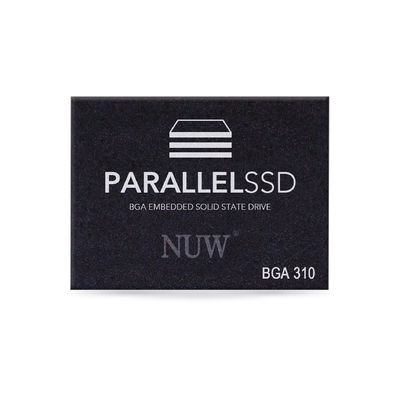

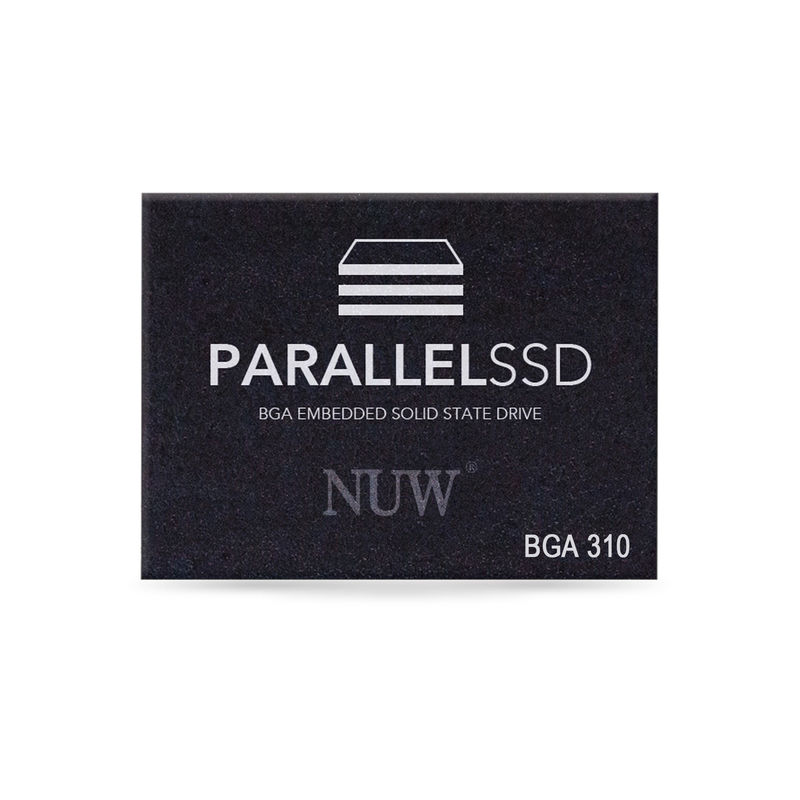

3XS Handheld Terminals BGA SSD Compact Industrial IoT Solid State Hard Drive

Name: 3XS Handheld Terminals BGA SSD Compact Industrial IoT Solid State Hard Drive
Brand: Shenzhen Quadra Seven Technology Co., Ltd.
SKU: BGA310
Price: 5.00 USD
Availability: InStock

Brand Name:	NUW
Model Number:	BGA310
MOQ:	10
Price:	$1-10/pcs
Delivery Time:	10-15days
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

AEC-Q100、RoHS、REACH、UL/CE

Form Factor:

BGA310

Interface:

SATA Ⅲ(SATA Ⅱ& SATA Ⅰ COMPATIBLE)

Dimension(mm):

30.0x20.0x2.75

Operating Temperature:

-40°C~85°C

Flash:

PSLC/TLC

Sequential Read/Write:

560MB/s; 500MB/s

Packaging Details:

Customizable Packaging Available

Supply Ability:

100k/month

Highlight:

Handheld Terminals BGA SSD

IoT solid state hard drive

PSLC small ssd hard drive

Product Description

3XS Compact BGA SSD for Handheld Terminals & Industrial IoT Solutions

Product Description

NUW 3XS Series industrial-grade BGA310 SSD is meticulously designed for the most challenging environments, offering unparalleled reliability and durability. With a wide operating temperature range from -40°C to 85°C and storage capabilities from -55°C to 95°C, it ensures reliable performance in harsh conditions. Its high read/write speeds of up to 560MB/s and 500MB/s, coupled with an MTBF of 2,000,000 hours, make it ideal for industrial automation, embedded systems, and data centers where durability and efficiency are paramount.

Product Parameter

Basic Information
Form Factor	BGA310
Interface	SATA Ⅲ(SATA Ⅱ& SATA Ⅰ COMPATIBLE)
Dimension(mm)	30.0x20.0x2.75
Flash	PSLC/TLC
Capacity	pSLC: 32GB,64GB,128GB TLC: 128GB,256GB,512GB
Temperature
Operating Temperature	-40°C~85°C
Storage Temperature	-55℃ ~ 95℃
Performance
Sequential Read/Write	560MB/s; 500MB/s
Random Read/Write(4K) IOPS	50K IOPS; 35K IOPS
Reliability
MTBF	2,000,000hrs
Humidity	5% ~ 95%(No condensing)
Electrical
Power Supply	3.3V(±5%)
Power Consumption	Active≤2W Idle≤0.5W
Optional Functions
Secure Erase	Y
Quick Erase	Y
