3XP Reliable BGA SSD IoT Sensors Wearables Solid State External Hard Drive REACH

Brand Name:	NUW
Model Number:	3XP
MOQ:	10
Price:	$1-10/pcs
Delivery Time:	10-15days
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

AEC-Q100、RoHS、REACH、UL/CE

Form Factor:

BGA307

Interface:

PCIe 3.0x4 NVMe 1.4

Dimension(mm):

30.0x35.0x3.0

Operating Temperature:

-40°C~85°C

Flash:

PSLC/TLC

Sequential Read/Write:

2500MB/s; 2100MB/s

Packaging Details:

Customizable Packaging Available

Supply Ability:

100k/month

Highlight:

Reliable BGA SSD

Wearables solid state external hard drive

compact ssd drive REACH

Product Description

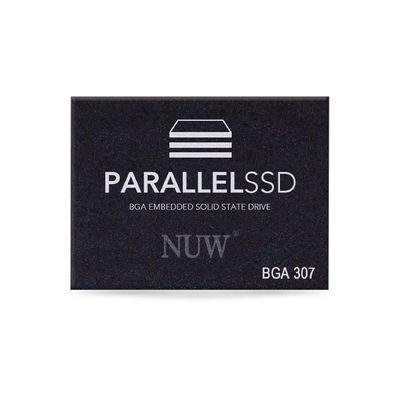

3XP Reliable BGA SSD for Compact Boards, IoT Sensors & Wearables

Product Description

NUW 3XP Series industrial-grade BGA307 SSD is meticulously designed for the most challenging environments, offering unparalleled reliability and durability. With a wide operating temperature range from -40°C to 85°C and storage capabilities from -55°C to 95°C, it ensures reliable performance in harsh conditions. Its high read/write speeds of up to 2500MB/s and 2100MB/s, coupled with an MTBF of 2,000,000 hours, make it ideal for industrial automation, embedded systems, and data centers where durability and efficiency are paramount.

Product Parameters

Basic Information
Form Factor	BGA307
Interface	PCIe 3.0x4 NVMe 1.4
Dimension(mm)	30.0x35.0x3.0
Flash	pSLC/TLC
Capacity	pSLC: 64GB,128GB,256GB TLC: 256GB,512GB,1TB
Temperature
Operating Temperature	-40°C~85°C
Storage Temperature	-55℃ ~ 95℃
Performance
Sequential Read/Write	2500MB/s; 2100MB/s
Random Read/Write(4K) IOPS	80K IOPS; 40K IOPS
Reliability
MTBF	2,000,000hrs
Humidity	5% ~ 95%(No condensing)
Electrical
Power Supply	3.3V(±5%)
Power Consumption	Active≤5.6W Idle≤1.8W
Optional Functions
Secure Erase	Y
Quick Erase	Y
