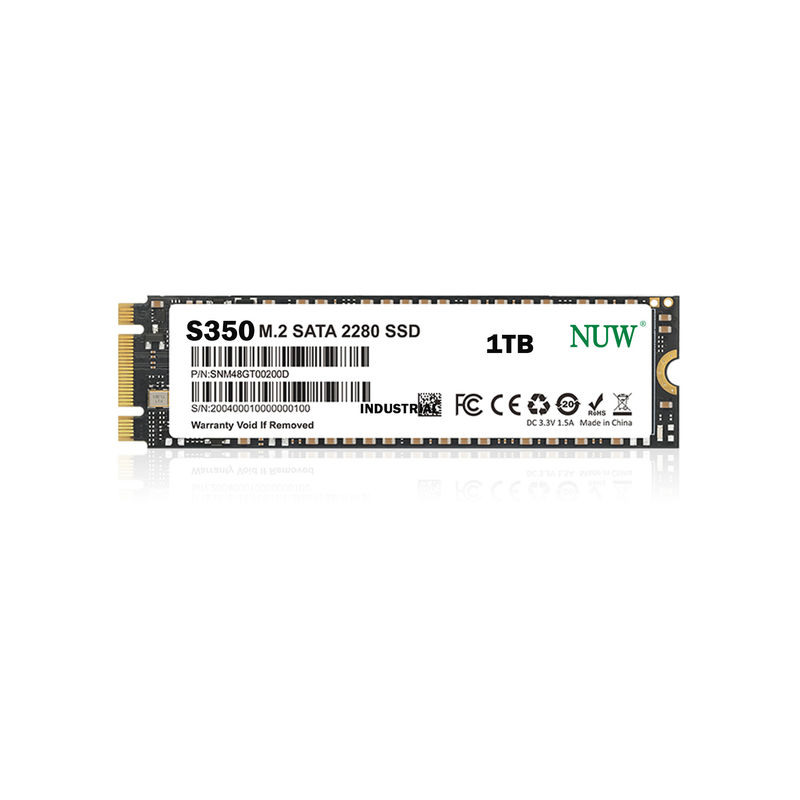

S350 Industrial M.2 SATA SSD 1tb 4tb Consistent Stable

Name: S350 Industrial M.2 SATA SSD 1tb 4tb Consistent Stable
Brand: Shenzhen Quadra Seven Technology Co., Ltd.
SKU: S350
Price: 260.00 USD
Availability: InStock

Brand Name:	NUW
Model Number:	S350
MOQ:	10
Price:	$70-450/pcs
Delivery Time:	10-15days
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

AEC-Q100、RoHS、REACH、UL/CE

Form Factor:

M.2 SATA

Sequential Read/Write:

560MB/s; 530MB/s

Interface:

SATA Ⅲ (SATA Ⅱ& SATA Ⅰ COMPATIBLE)

Operating Temperature:

-40℃ ~ 85℃

Dimension(mm):

80.0×22.0×3.6

Shock Reliability:

1500g/0.5ms

Packaging Details:

Customizable Packaging Available

Supply Ability:

100k/month

Highlight:

Industrial M.2 SATA SSD

ssd m 2 sata 1tb Consistent

m 2 sata ssd 4tb Stable

Product Description

S350 Industrial M.2 SSD | SATA Interface with Consistent, Stable Performance

Product Description

NUW S350 series industrial M.2 SATA SSD Module delivers rugged reliability with -40°C to 85°C wide-temperature operation, ensuring stable performance in harsh environments like industrial automation, medical devices, and transportation systems. Featuring SATA III 6Gb/s speeds (up to 560/530MB/s) and 3D TLC NAND flash technology, it offers high endurance (1 DWPD) and capacities from 960GB to 8TB, optimized for embedded systems, servers, and edge computing. NUW S350 series M.2 SATA SSD Modules have two form factors 2242 and 2280 with B-M key. Built with industrial-grade components and support for LDPC ECC, TRIM, and S.M.A.R.T., it guarantees data integrity and longevity in mission-critical applications.

Product Parameters

Basic Information
Form Factor	M.2 SATA
Interface	SATA Ⅲ (SATA Ⅱ& SATA Ⅰ COMPATIBLE)
Dimension(mm)	2280:80.0×22.0×3.6
Cache	DRAM
Flash	TLC
Capacity	1TB2TB, 4TB, 8TB
Temperature
Operating Temperature	-40℃ ~ 85℃
Storage Temperature	-55℃ ~ 95℃
Performance
Sequential Read/Write	560MB/s; 530MB/s
Random Read/Write(4K) IOPS	99K IOPS; 86K IOPS
Reliability
MTBF	2,000,000hrs
Vibration	15g(10~2000Hz)
Shock	1500g/0.5ms
Humidity	5% ~ 95% (No condensing)
Electrical
Power Supply	3.3V±5%
Power Consumption	Active≤3.8W Idle≤0.8W
Optional Functions
Secure Erase	Y
Quick Erase	Y
