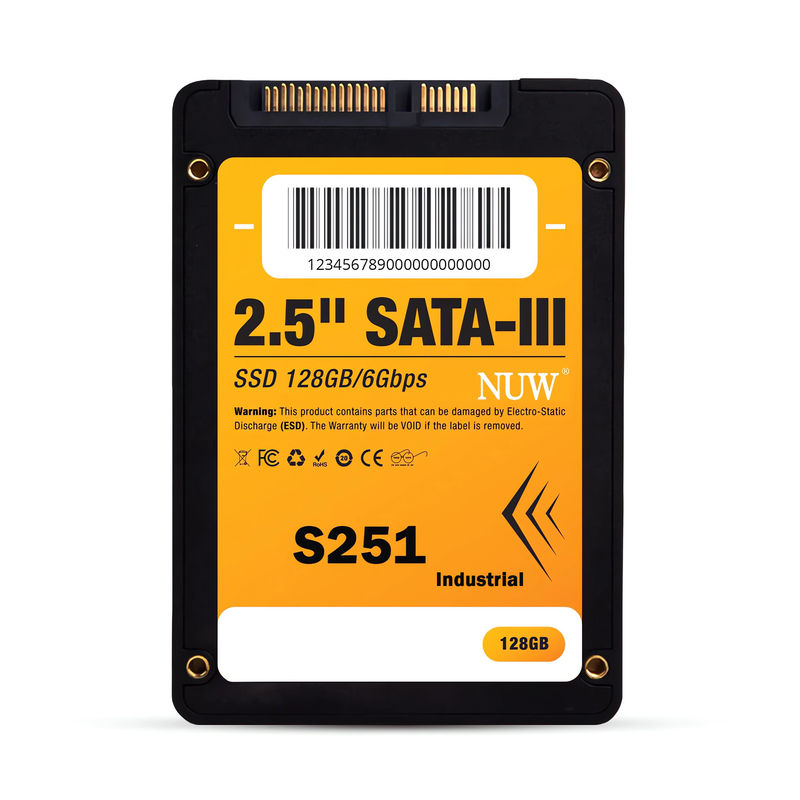

S251 Harsh IoT 2.5inch SATA SSD 1tb Military Portable Ssd Drive

Name: S251 Harsh IoT 2.5inch SATA SSD 1tb Military Portable Ssd Drive
Brand: Shenzhen Quadra Seven Technology Co., Ltd.
SKU: S251
Price: 260.00 USD
Availability: InStock

Brand Name:	NUW
Model Number:	S251
MOQ:	10
Price:	$70-450/pcs
Delivery Time:	10-15days
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

AEC-Q100、RoHS、REACH、UL/CE

Form Factor:

2.5''SATA

Sequential Read/Write:

560MB/s; 520MB/s

Interface:

SATA Ⅲ (SATA Ⅱ& SATA Ⅰ COMPATIBLE)

Operating Temperature:

-40℃ ~ 85℃

Dimension(mm):

100.2×69.85×7.0

Shock Reliability:

1500g/0.5ms

Packaging Details:

Customizable Packaging Available

Supply Ability:

100k/month

Highlight:

Harsh IoT 2.5inch SATA SSD 1tb

560MB/s ssd hard disk

Military portable ssd drive

Product Description

S251 Industrial-Grade SATA SSD | Designed for Harsh IoT & Military Applications

Product Description

NUW S251 series industrial 2.5-inch SATA SSD Module delivers robust reliability with -40°C to 85°C wide-temperature operation and SATA III 6Gb/s speeds up to 560/520MB/s, ideal for harsh environments like industrial automation, transportation systems, and medical devices. Built with industrial-grade components and 3D TLC NAND, it offers capacities from 32GB to 2TB, enhanced by power-loss protection (PLP) and LDPC ECC for data integrity in mission-critical tasks. Its 2.5-inch form factor ensures seamless compatibility with legacy systems, while anti-vibration design and conformal coating guarantee durability against shocks, dust, and chemicals. Perfect for upgrading embedded systems, edge computing, or rugged IoT applications requiring stable, long-term performance.

Product Parameters

Basic Information
Form Factor	2.5''SATA
Interface	SATA Ⅲ(SATA Ⅱ& SATA Ⅰ COMPATIBLE)
Dimension(mm)	100.2×69.85×7.0
Cache	DRAM-Less
Flash	TLC
Capacity	pSLC:32GB, 64GB, 128GB, 256GB, 512GB TLC:128GB, 256GB, 512GB, 1TB, 2TB
Temperature
Operating Temperature	-40℃ ~ 85℃
Storage Temperature	-55℃ ~ 95℃
Performance
Sequential Read/Write	560MB/s; 520MB/s
Random Read/Write(4K) IOPS	98K IOPS; 30K IOPS
Reliability
MTBF	2,000,000hrs
Vibration	15g(10~2000Hz)
Shock	1500g/0.5ms
Humidity	5% ~ 95%(No condensing)
Electrical
Power Supply	2.5'':5V±5%
Power Consumption	Active≤3.2W Idle≤0.7W
Optional Functions
Secure Erase	Y
Quick Erase	Y
